ON/OFF swimming pool heat pump


AIROSD Commercial Swimming Pool Heat pump are specially designed and engineered for commercial pool or spawater temperature control. The V-shape design condensers airflow direction and intelligent control system are let the units high efficiency and stable working performance.

ON/OFF Swimming Pool Heat Pump


AIROSD Swimming Pool Heat pump

Applicable to swimming pool, SPA or fish cultivation. Can be used for household & commercial.OEM design optional. Different color available.CE approved.


ON/OFF Swimming Pool Heat Pump


Small water temp difference only 1-5 deg c.

Both water heating & cooling, Min 8°C/ Max 40°C.Auto flow detect.


ON/OFF Swimming Pool Heat Pump


Safe and reliable

Titanium heat exchanger in PVC shell , virtually impervious to water chemistry damage.Insufficient water flow protection & high/low pressure protection.Auto 4-way-valve defrost, ensure reliably running at cold ambient temp.


ON/OFF Swimming Pool Heat Pump


World famous Japanese brand compressor

Special materials are selected for special parts, and the characteristics of low wear, low energy consumption, high efficiency and durability are still maintained during long-term operation.


ON/OFF Swimming Pool Heat Pump


Widely choose for heating capacity

Working ambient temperature down to - 15 ° C, The unit will be not affected by wind, rain, thunder and snow weather.


ON/OFF Swimming Pool Heat Pump


Environmentally friendly refrigerant R410a

The air source heat pump uses the heat in the air to convert hot water. There is no emission and pollution during operation.


ON/OFF Swimming Pool Heat Pump

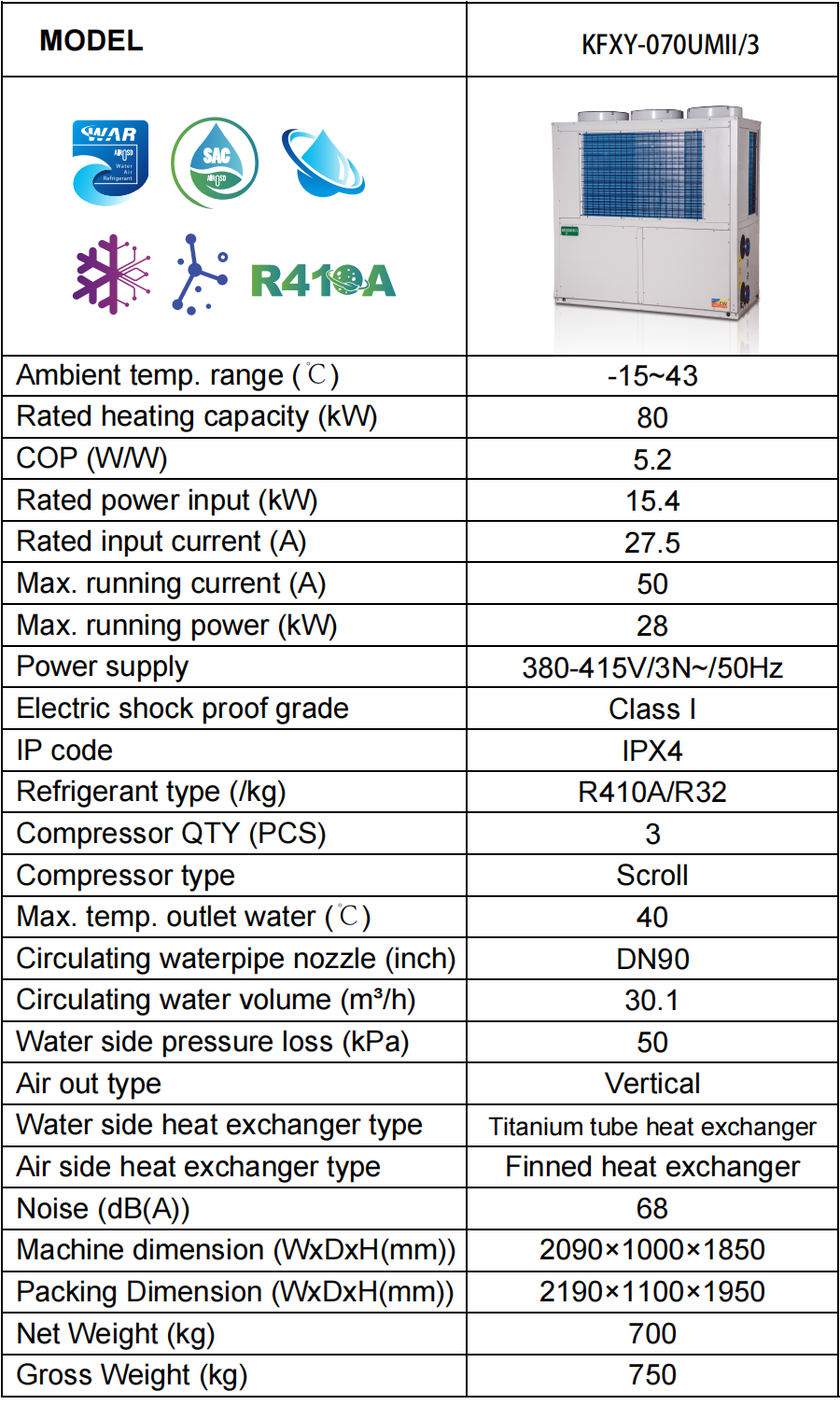

1. Test conditions: dry bulb temperature 20℃ / wet bulb temperature 15℃, Pool inlet water temperature 26℃/outlet water temperature 28℃.

2. Models and parameters are subject to change without notice due to product improvement. Specific parameters are subject to the nameplate parameters.

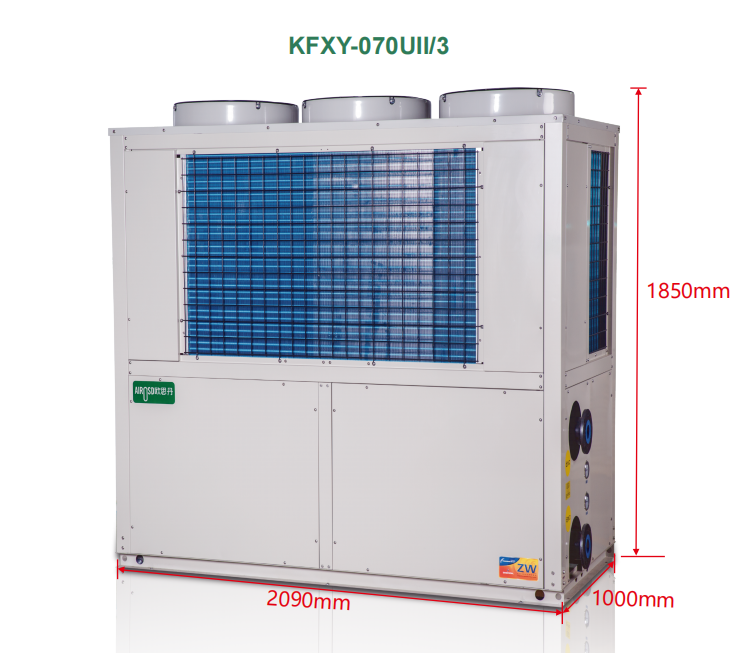

Dimension outline drawing


ON/OFF Swimming Pool Heat Pump
