Description
CE EVI R290 10KW Heat Pumps for Home Heating is a state-of-the-art solution designed to provide efficient, reliable, and environmentally friendly heating for residential spaces. With its advanced EVI
(Enhanced Vapor Injection) technology and the eco-friendly R290 refrigerant, this heat pump offers exceptional performance in even the coldest climates, ensuring consistent comfort throughout the year.

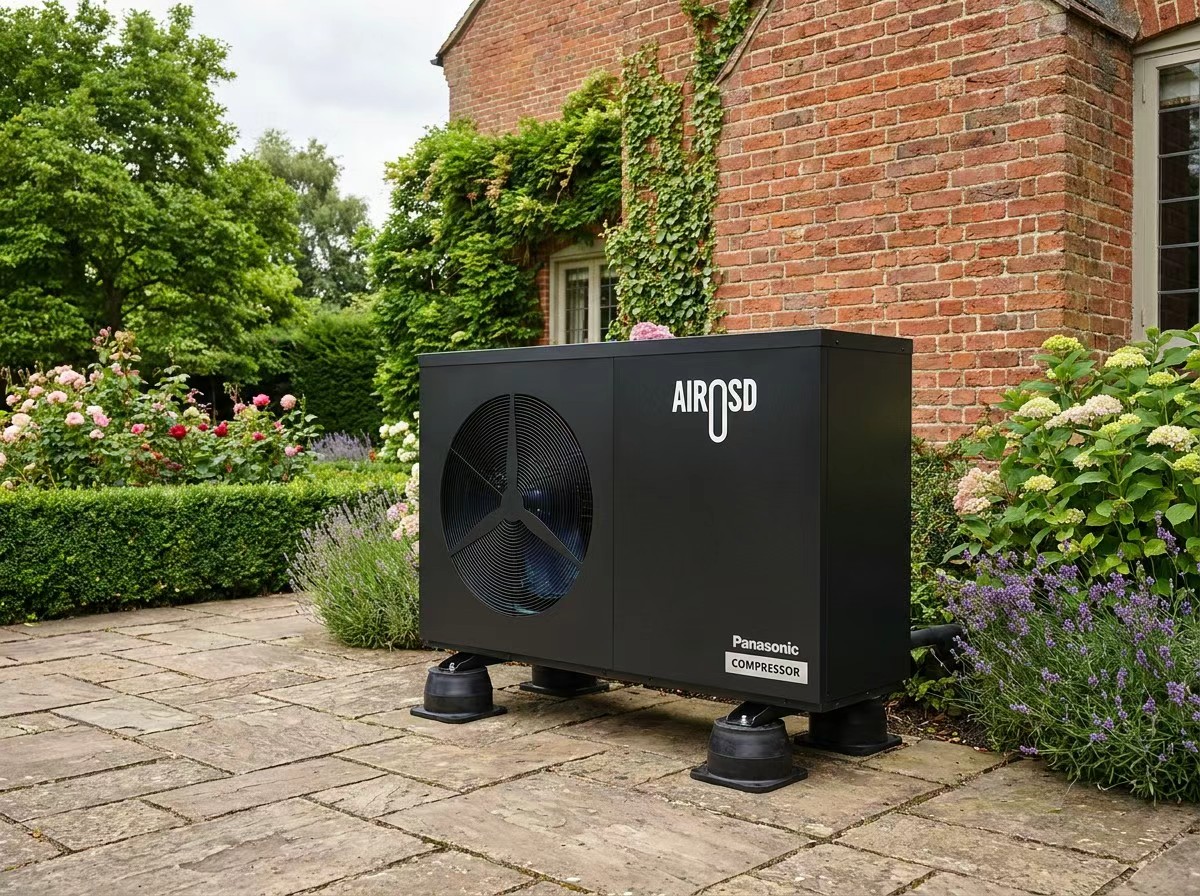

Advanced EVI Heat Pumps for Home Heating
At the heart of this system is the EVI technology, which significantly enhances the heat pump’s ability to perform efficiently in low-temperature environments. The EVI system increases the heating
capacity and efficiency of the heat pump by allowing it to operate effectively even when outdoor temperatures drop significantly. This makes the CE EVI R290 10KW Heat Pump an ideal choice for
homeowners in colder regions who require dependable heating solutions throughout the winter.

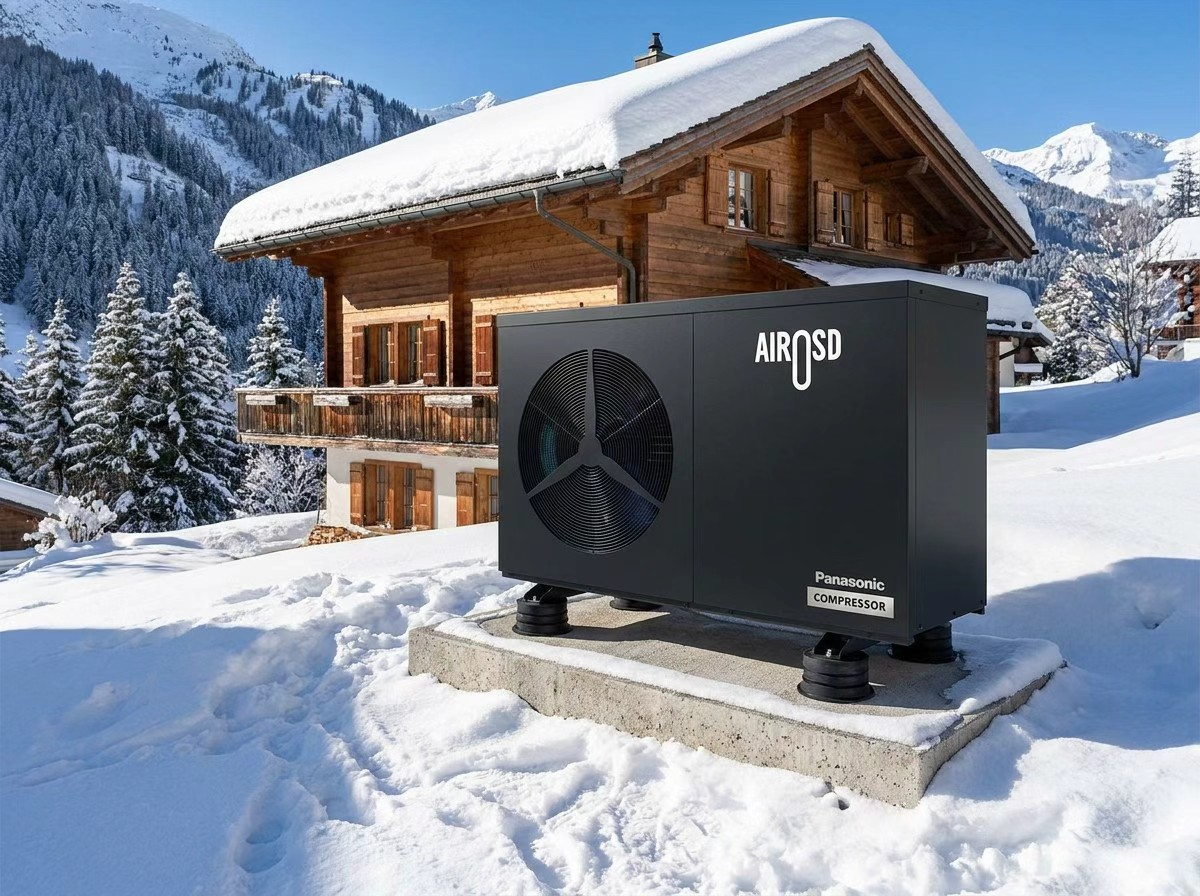

Integrated Air Conditioning and Heat Pump Units
This 10KW heat pump unit is designed to provide both heating and cooling functions, serving as a comprehensive climate control solution for homes. As a combined air conditioning and heat pump unit,
it eliminates the need for separate systems, offering both functions in a single, compact unit. Whether you need to heat your home during the winter or cool it during the summer, this unit delivers year-round
comfort with maximum efficiency.
Efficient Air Con Heater Unit
The CE EVI R290 10KW Heat Pump doubles as an air con heater unit, providing seamless integration of air conditioning and heating. The unit is designed to quickly switch between heating and cooling modes, ensuring
that your home maintains the desired temperature regardless of the season. Its efficient operation reduces energy consumption, making it a cost-effective solution for maintaining a comfortable living environment.
Environmentally Friendly Air Conditioning Heat Pump
The use of R290 refrigerant in this air conditioning heat pump underscores its commitment to environmental sustainability. R290 is a natural refrigerant with low global warming potential (GWP), making this heat pump
a greener alternative to systems that use traditional refrigerants. The combination of R290 and EVI technology ensures that the system not only provides superior performance but also minimizes environmental impact.
Energy Efficiency and Cost Savings
The CE EVI R290 10KW Heat Pump is designed with energy efficiency as a priority. The EVI technology enhances the system’s efficiency by allowing it to operate effectively in extreme temperatures, reducing the need
for additional heating sources. This results in significant energy savings and lower utility bills for homeowners. Additionally, the heat pump’s ability to provide both heating and cooling in one unit further contributes
to its cost-effectiveness.
Durable and Reliable Performance
Constructed with high-quality materials and advanced engineering, this heat pump is built to last. Its durable design ensures reliable performance even under demanding conditions, making it a long-term investment
for home heating and cooling. The unit’s robust construction and advanced technology mean it can withstand various environmental challenges, ensuring consistent operation over time.
Parameters
| QBKFXFC-010SBI | |||
| Heating Capacity (A7W35) kW | 3.5～9.0 | COP | 4.70～5.32 |
| Cooling capacity (A35W7) kW | 2.8～7.5 | EER | 3.14～3.62 |
| DHW (A20W15-55) kW | 4.0～10.0 | COP | 4.38～5.01 |
| Compressor | Panasonic | ERP(35℃) | A +++ |
| Refrigerant Type | R290 | Max Input Power | 4.8 kW |
| Power Supply | 220V-240 / 50Hz | Max Operating Current （A） | 20 |
| Water Yield (m³/h) | 1.55 | Ambient Temp. Range | -30～45 |
| Water Side Pressure Loss（kPa） | 25 | Noise (dB（A)) (1M) | ≤50 |
| Dimension (W×D×H) | 1250×536×970 | Packing Dimension (W×D×H) | / |
| N.W.( kg) | 110 | G.W.( kg) | 115 |
| Note： 1. Heating A7W35 condition：(DB/WB)= 7°C/ 6°C, inlet water temperature 30°C, outlet water temperature 35°C; 2. Heating A7W45condition：(DB/WB)= 7°C/ 6°C, inlet water temperature 40°C, outlet water temperature 45°C; 3. Rated cooling condition: (DB/WB)=35°C, inlet water temperature 12°C, outlet water temperature 7°C; 4. DHW Heating capacity conditions : (DB/WB) =20°C/15°C, inlet water temperature 15°C, outlet water temperature 55°C. Due to product improvement, above datas are subject to change without prior notice, please take the rating plate as standard. |
|||
Quiet Operation for Residential Applications
Noise is an important consideration for residential heat pump installations. The AIROSD R290 Tri-Generation Heat Pump is designed with a focus on low-noise operation, making it suitable for villas,
houses, apartments, and other residential environments.The outdoor unit can be installed in an appropriate external location while the indoor hydronic system distributes heating or cooling throughout
the building.Professional installation and correct equipment positioning are recommended to achieve optimal acoustic and operating performance.
Compact and Flexible System Design
The integrated tri-generation concept helps reduce the number of independent heating, cooling, and hot water systems required in a building. This can simplify system planning and provide greater
flexibility for installation.
Depending on the project configuration, the heat pump can be combined with:
Hot water storage tanks、Buffer tanks、Underfloor heating systems、Fan coil systems、Radiators、Smart controllers、Other compatible hydronic components
The final system configuration should be selected according to the building load, local climate, water temperature requirements, and installation conditions.
Smart Control and Easy Management
The intelligent control system allows users and installers to manage key operating parameters conveniently. Heating, cooling, and hot water functions can be configured according to actual household
requirements.Smart control helps coordinate system operation and improve energy utilization. Depending on the selected model and configuration, remote monitoring or smart control functions
may also be available.The result is a more convenient and efficient way to manage household heating, cooling, and hot water from one integrated heat pump system.
