Description
The CE R290 12KW All-in-one Heat Pump Heating System is a state-of-the-art solution designed to provide comprehensive heating and cooling for residential and small commercial spaces. This system integrates advanced technology with eco-friendly refrigerant to deliver optimal performance, making it an excellent choice for those seeking an energy-efficient and environmentally responsible heating and cooling solution.
This All-in-one Heat Pump Heating System combines multiple functions into a single, compact unit, offering both heating and cooling capabilities. With a capacity of 12KW, this system is designed to handle the demands of various spaces, ensuring a comfortable indoor environment year-round. The all-in-one design simplifies installation and operation, reducing the need for multiple units and minimizing maintenance requirements. This makes it an ideal choice for homeowners and businesses looking for a streamlined solution to manage their indoor climate effectively.
In addition to heating, the CE R290 12KW All-in-one Heat Pump also serves as a powerful air conditioning unit. This dual functionality ensures that the system can maintain optimal temperatures regardless of the season. The air conditioning feature is designed to be highly efficient, utilizing the same R290 refrigerant that powers the heating function. This refrigerant is known for its low global warming potential, making it a more sustainable choice compared to traditional refrigerants. As a result, the system not only provides comfort but also aligns with environmentally conscious practices.
This All-in-one Heat Pump Heating System utilizes air source technology, which is one of the most efficient methods for both heating and cooling. The air source heating and air conditioning capabilities of this system make it a versatile solution for managing indoor climate. By extracting heat from the air, the system can provide warmth during the winter and cool air during the summer, all while maintaining high energy efficiency. The air source technology is also more sustainable, as it reduces the need for energy-intensive heating methods, further lowering the carbon footprint of the household or business.
The CE R290 12KW All-in-one Heat Pump Heating System is designed with energy efficiency in mind. The use of R290 refrigerant, coupled with the advanced air pump technology, ensures that the system operates at peak efficiency while minimizing energy consumption. This not only results in lower utility bills but also contributes to a reduction in greenhouse gas emissions. The system's design also includes features like variable speed compressors and smart thermostats, which optimize energy use based on the specific needs of the space, ensuring that no energy is wasted.
The all-in-one design of the CE R290 12KW Heat Pump simplifies the installation process, as it eliminates the need for separate heating and cooling units. This makes it easier to integrate into existing HVAC systems or as a standalone solution for new constructions. The system is also designed for low maintenance, with durable components and self-diagnostic features that help identify and resolve issues before they become serious problems. Regular maintenance tasks, such as cleaning filters or checking refrigerant levels, are straightforward and can be easily performed by homeowners or professional technicians.
Parameter
| QBKFXFC-012SBI | |||
| Heating Capacity (A7W35) kW | 4.51～13.92 | COP | 4.03～5.28 |
| Cooling capacity (A35W7) kW | 3.77～9.94 | EER | 1.09～3.64 |
| DHW (A20W15-55) kW | 5.0～13.0 | COP | 4.31～4.95 |
| Compressor | Panasonic | ERP(35℃) | A +++ |
| Refrigerant Type | R290 | Max Input Power | 6.9 |
| Power Supply | 220V-240 / 50Hz | Max Operating Current （A） | 30 |
| Water Flow Rate (m³/h) | 2.408 | Ambient Temp. Range（℃） | -30～45 |
| Water Side Pressure Loss（kPa） | 30 | Noise (dB（A)) (1M) | ≤45 |
| Dimension (W×D×H) | 1180×510×710 mm | Packing Dimension (W×D×H) | 1220×580×840 mm |
| N.W.( kg) | 90 | G.W.( kg) | 105 |
| Note： 1. Heating A7W35 condition：(DB/WB)= 7°C/ 6°C, inlet water temperature 30°C, outlet water temperature 35°C; 2. Heating A7W45condition：(DB/WB)= 7°C/ 6°C, inlet water temperature 40°C, outlet water temperature 45°C; 3. Rated cooling condition: (DB/WB)=35°C, inlet water temperature 12°C, outlet water temperature 7°C; 4. DHW Heating capacity conditions : (DB/WB) =20°C/15°C, inlet water temperature 15°C, outlet water temperature 55°C. Due to product improvement, above datas are subject to change without prior notice, please take the rating plate as standard. |
|||

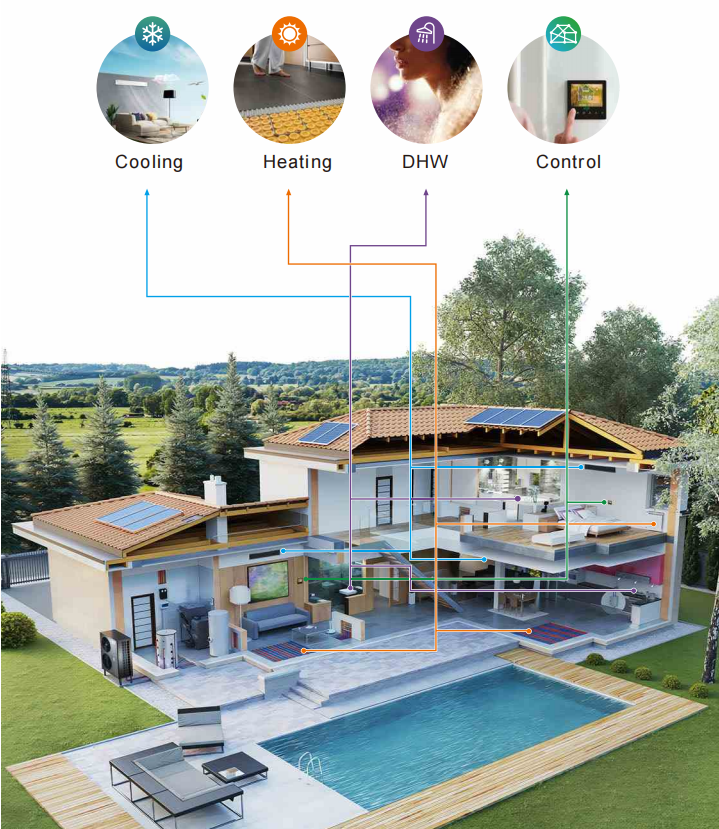

Heating&Cooling&DHW 3 In 1
Cooling in summer, heating in winter, optional wind panel, floor heating, domestic hot water, etc. at the end, convenient and
flexible R290 full DC inverter EVI heat pump for higher efficient house heating/cooling and domestic hot water.
High Efficiency Full DC Inverter Compressor
Adopt DC inverter compressor and DC brushless fan motor, which can realize 20%-120% stepless capacity adjustment. During operation, the speed of the compressor and fan can be automatically and intelligently adjusted according to the actual load demand of the user, so as to reduce the energy consumption of the compressor and fan , so that the unit operates at the optional level and achieves the energy saving purpose of on-demand output
