Description

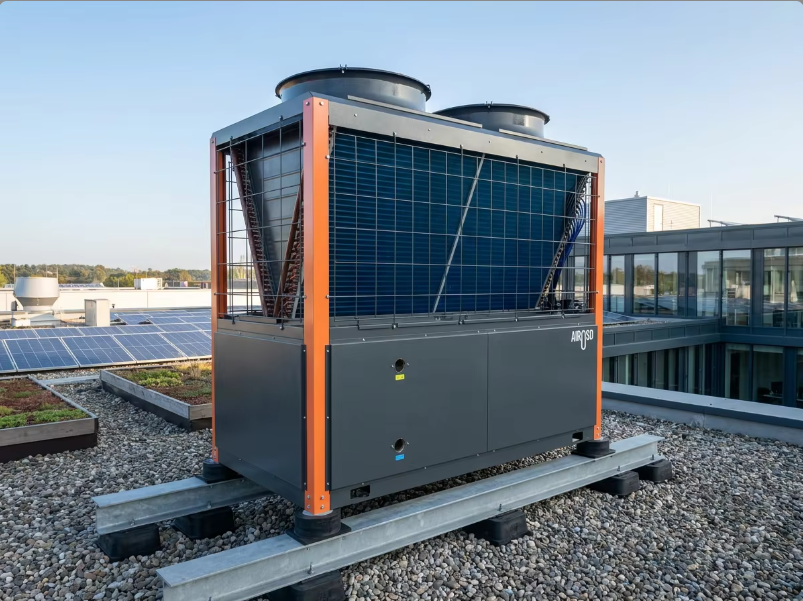

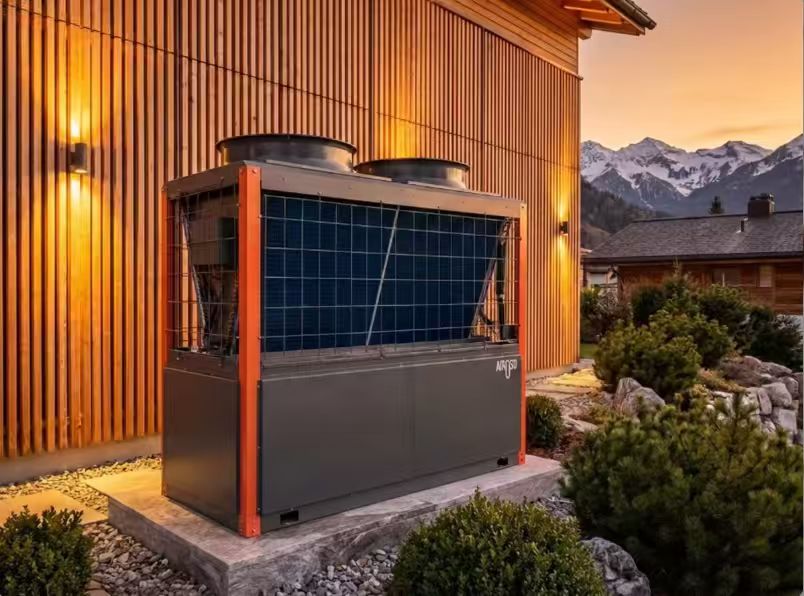

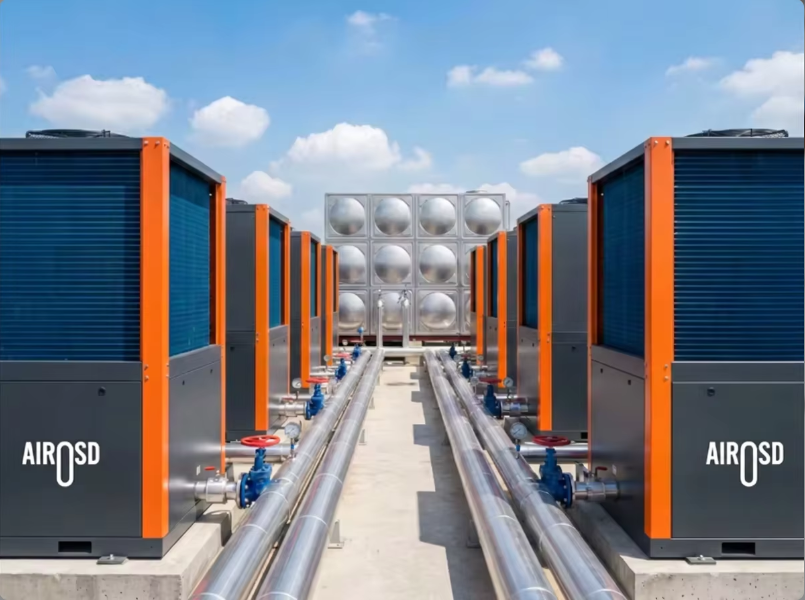

The CE R290 90KW Commercial Heating and Cooling Heat Pumps are designed to provide advanced climate control solutions for a variety of commercial applications. Combining high-performance heating and cooling capabilities with eco-friendly technology, this system is ideal for large-scale commercial environments that require reliable and efficient temperature regulation. Whether you are managing an office building, retail space, or industrial facility, these heat pumps offer a comprehensive solution for all your heating and cooling needs.
The CE R290 90KW Heat Pumps represent the latest in commercial heat pump systems, engineered to deliver robust performance and energy efficiency. With a substantial 90KW capacity, these systems are capable of meeting the demands of large commercial spaces, providing consistent and effective temperature control. The use of advanced heat pump technology allows the system to deliver superior heating and cooling performance while maintaining low operational costs.
This heat pump system excels in versatility, offering both heating and cooling capabilities to create a comfortable environment year-round. By incorporating the latest in heat pump technology, the CE R290 system can efficiently switch between heating and cooling modes based on seasonal demands. This flexibility allows businesses to maintain optimal indoor conditions throughout the year, ensuring a pleasant experience for employees, customers, and clients alike.
The CE R290 90KW Heat Pumps utilize R290 refrigerant, an environmentally friendly option known for its low global warming potential. R290, also known as propane, is a natural refrigerant with excellent thermodynamic properties that enhance the system's efficiency. By choosing this eco-friendly refrigerant, the heat pump system supports sustainability efforts and aligns with global initiatives to reduce greenhouse gas emissions. This commitment to environmental responsibility is a significant advantage for businesses looking to improve their sustainability practices.
The CE R290 90KW Heat Pumps are designed as a comprehensive heating and cooling system, integrating seamlessly into existing commercial HVAC setups. The system provides effective climate control by harnessing the ambient air to regulate indoor temperatures. Its ability to deliver both heating and cooling from a single unit simplifies installation and operation, reducing the need for separate systems and associated costs.
The CE R290 90kW Heat Pumps feature user-friendly controls that make managing the system straightforward and convenient. The intuitive interface allows users to set and adjust heating and cooling parameters with ease, ensuring that the system operates according to specific needs. Real-time monitoring and digital displays provide important information on system status and performance, making it easy to manage and optimize climate control.
parameter
| QBKFXFC-090UBII | |||
| Heating Capacity (A7W35) | 22.00～90.00 kW | COP | 3.99～5.32 |
| Cooling capacity (A35W7) | 17.00～62.00 kW | EER | 2.61～3.44 |
| Ambient Temp. Range | -25～45 | ERP(55℃) | A++ |
| Compressor | Panasonic | ERP(35℃) | A +++ |
| Refrigerant Type | R290 | Max Input Power | 36 kW |
| Power Supply | 380-415/3N～ / 50Hz | Max Operating Current （A） | 28 |
| Water flow (m³/h) | 13.76 | Temp. Range of Heating | 25~75 ℃ |
| Water Side Pressure Loss（kPa） | 40 | Noise (dB（A)) | ≤56 |
| Dimension (W×D×H) mm | 2018×988×1896 | Packing Dimension (W×D×H) | 2110×1080×2100 |
| N.W.( kg) | 560KG | G.W.( kg) | 580KG |
| Note： 1. Heating A7W35 condition：(DB/WB)= 7°C/ 6°C, inlet water temperature 30°C, outlet water temperature 35°C; 2. Heating A7W55condition：(DB/WB)= 7°C/ 6°C, inlet water temperature 47°C, outlet water temperature 55°C; 3. Rated cooling condition: (DB/WB)=35°C, inlet water temperature 12°C, outlet water temperature 7°C; Due to product improvement, above datas are subject to change without prior notice, please take the rating plate as standard. |
|||
Details
High Efficiency A+++ Energy Level
Targeting the European market, 3VF+ Series Air to Water Heat Pump is specially developed with the most cutting-edge heatpump technology and modern design to meet stringent requirements for efficiency,
stability and quietness. Not only does 3VF+series use R32 Refrigerant and full DC Inverter EVI technology, but also be rated with A+++ energy label. With top energyrating A+++ , the unit is currently most
energy efficient and can greatly reduce energy bills for customers.
High Efficiency Full DC Inverter Compressor
Adopt DC inverter compressor and DC brushless fan motor, which can realize 20%-120% stepless capacity adjustment. During operation, the speed of the compressor and fan can be automatically and intelligently
adjusted according to the actual load demand of the user, so as to reduce the energy consumption of the compressor and fan , so that the unit operates at the optimal level and achieves the energy saving purpose of
on-demand output.
Automatic defrost mode + anti-secondary long ice technology
The outdoor unit adopts outdoor temperature sensor and heat exchanger temperature sensor to perform variable-parameterdefrosting and accurately grasp the defrosting timing,
which effectively solves the problem of "no defrosting when there is frost, but defrosting without frost", and the amount of frost per unit time is significantly reduced. Only 1/3 of the normal defrost
mode.At the same time, with the unique anti-secondary long-ice technology of AIROSD, it can ensure that there is no frost at thebottom of the outdoor heat exchanger during heating in winter, and at the same time,
the ice-water mixture left along the finscan be fully heated to a liquid state during defrosting. It is drained through the bottom drain hole to avoid poor heating effectcaused by the accumulation of frost at the bottom.
